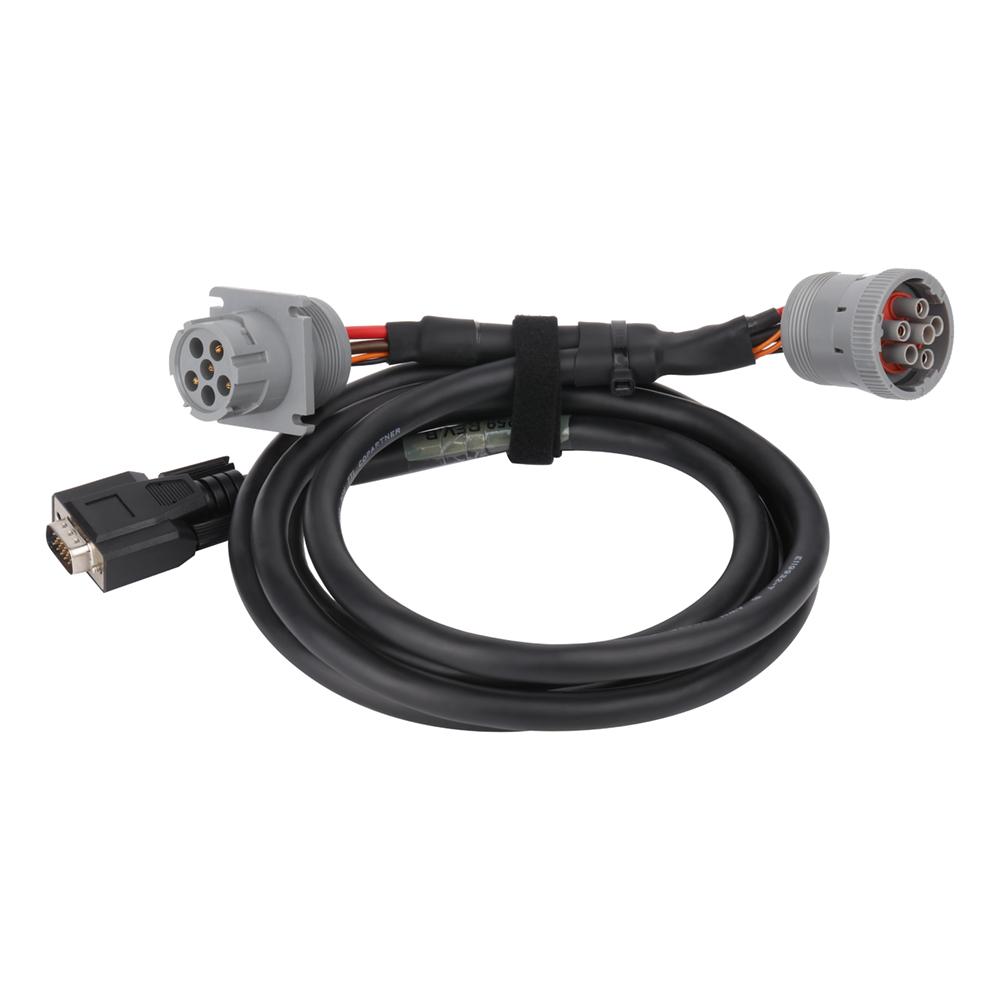

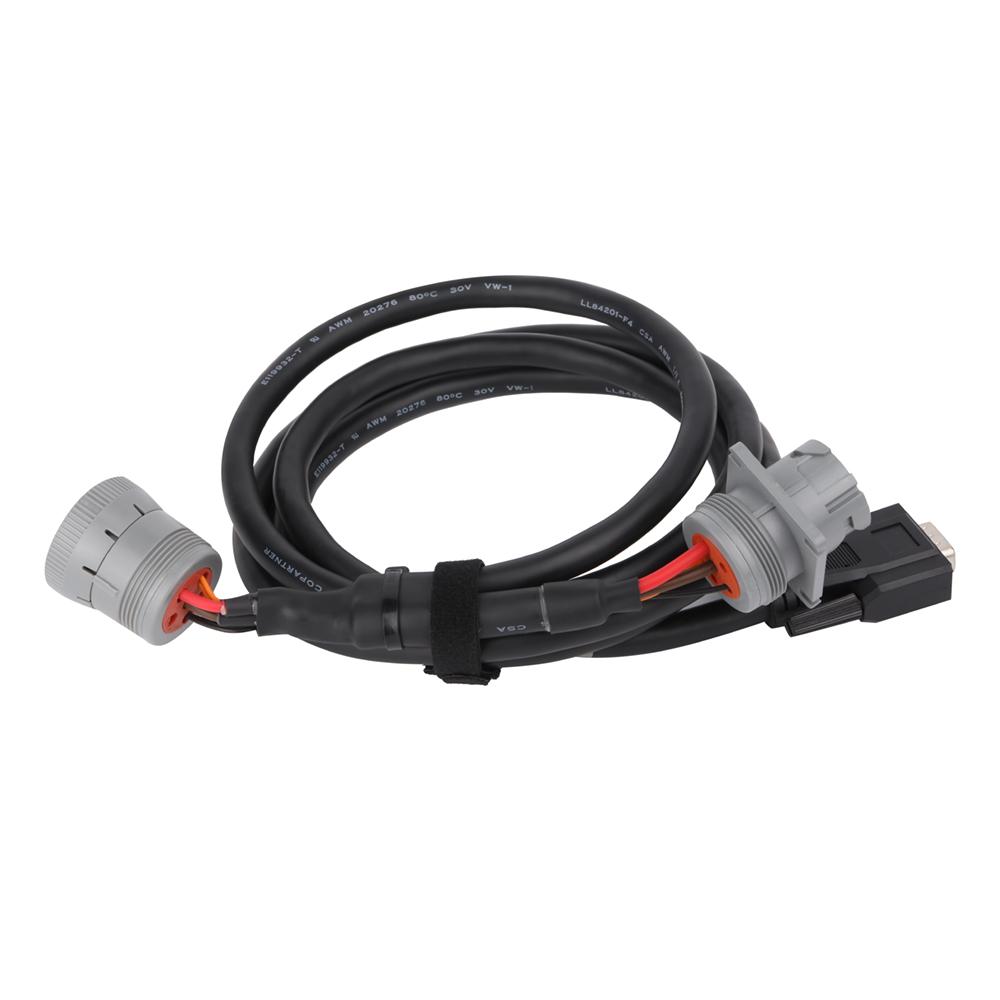

產品描述

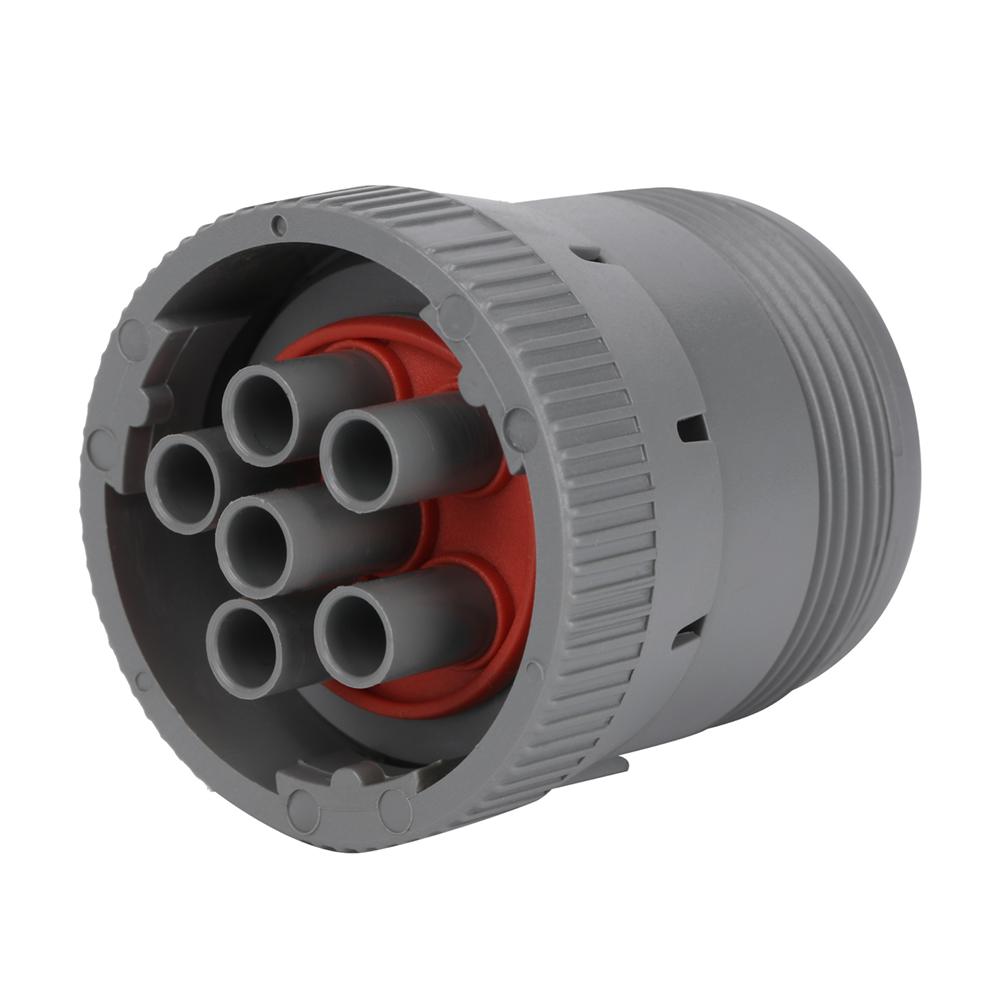

J1939 female socket	equivalent of Deutsch HD16-9-1939S-P080
Type of J1939 female socket	Type 2
J1939 male receptacle	equivalent of Deutsch HD10-9-1939P-P080
Type of J1939 male receptacle	Type 2
Molex 20 Pin Female plug	equivalent of 43025-2000
Wire	18AWG, pure copper
Material of J1939 connectors	PA66 + glass fiber
Material of Molex plug	PA66
Pin assignment or pin out	customized
Cable length	customized
Pins or terminals	copper, nickel-plated or gold-plated
Contact Resistance	3 ohm max.
Insulation Resistance	5M ohm min.
Working Temperature	−25℃ ~ +85℃
Testing	100% open, short and miss-wire testing
Testing Voltage	DC300V 5M ohm/10ms
Warranty	1 year
